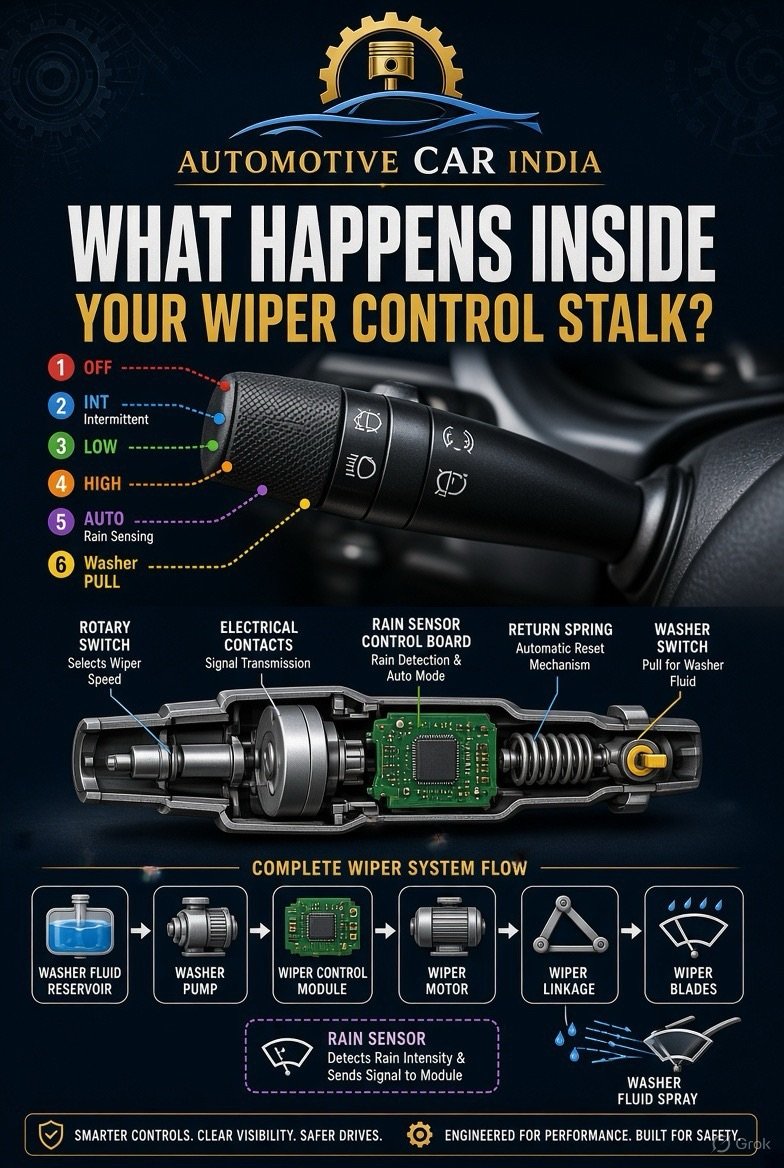

WHAT HAPPENS INSIDE YOUR WIPER CONTROL STALK?
Read Time:34 Second
🌧️🚗
That small lever behind the steering wheel controls an entire system designed to keep your windshield clear.
🔹 OFF → Wipers stop
🔹 INT → Intermittent wiping
🔹 LOW → Slow continuous wiping
🔹 HIGH → Fast continuous wiping
🔹 AUTO → Rain sensor controls wipe speed on equipped vehicles
🔹 PULL → Washer fluid sprays + wipers activate
⚙️ INSIDE THE STALK:
Rotary switch • Electrical contacts • Return spring • Washer switch
Rain-sensing components may be located elsewhere in the vehicle.
🔄 WIPER FLOW:
Stalk → Control Module/Relay → Wiper Motor → Linkage → Blades
💧 WASHER FLOW:
Switch → Pump → Nozzles → Windshield
One small lever. A complete system working to keep your view clear in the rain. 🌧️
— Automotive Car India
#Automotive #CarElectrical #WiperSystem #Mechanics #CarMaintenance
